Brine King.
Saturated brine, on demand.
Brine King salt dissolvers produce a continuous supply of saturated, filtered, crystal-clear brine for food applications and water treatment systems. Four standard models in FRP or corrosion-resistant plastic construction, sized for high-volume operations.
A simple down-flow dissolver.

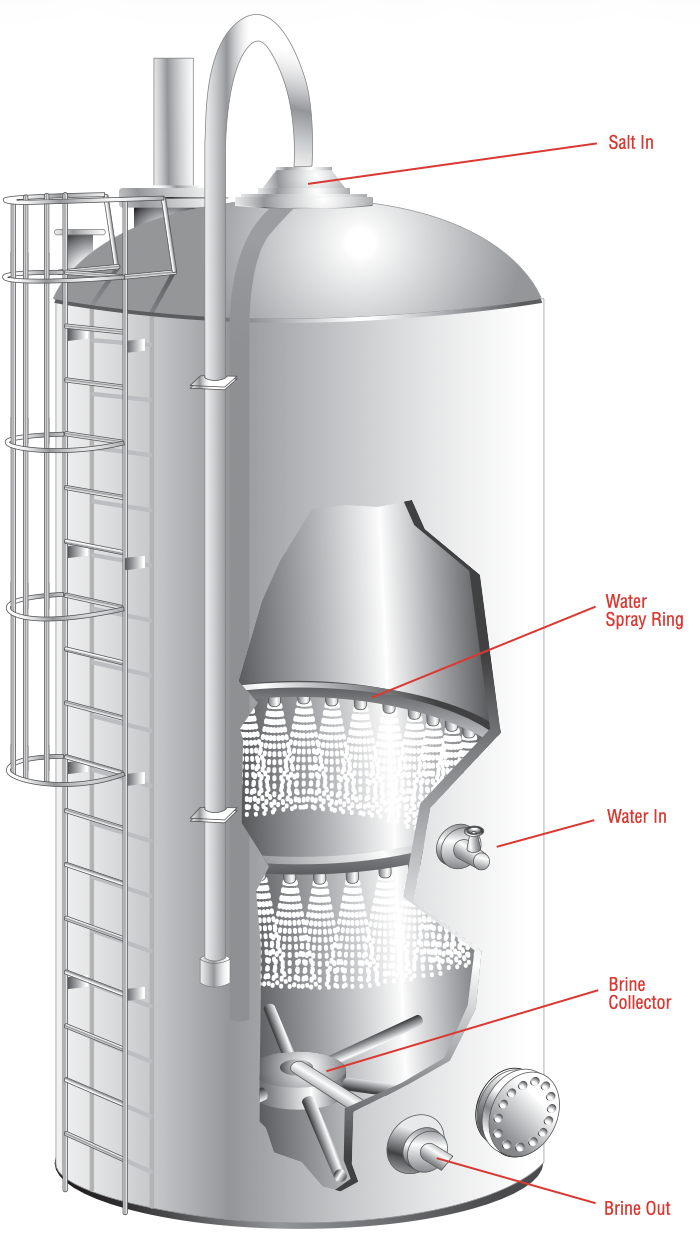

The Brine King is a down-flow system designed to produce saturated brine by dissolving granulated salt or rock salt.
Fresh water enters through a perforated spray ring inside the dissolving tank. The water passes downward through the salt mass, dissolving the salt and producing fully saturated brine. The brine then flows through a three-layer filter bed of natural washed stone, which removes solids and impurities. What comes out is a crystal-clear, 100% saturated solution, ready for use.
A filter bed is not required when dissolving rock salt.
Water In
Fresh water enters through a perforated spray ring inside the dissolving tank.
Salt Mass
Water passes downward through the salt mass, granulated or rock salt, dissolving as it goes.
3-Layer Filter Bed
Saturated brine flows through a bed of natural washed stone that removes solids and impurities.
Brine Out
Crystal-clear, 100% saturated brine is drawn off by direct pumping at 40–50 USGPM (granulated salt) or 20–25 USGPM (rock or solar salt), sized to demand.
Four standard sizes.
Pneumatic-truck-fed units sized to brine demand and salt-storage footprint, from 23-ton through 70-ton internal capacity.
| Model | Dimensions | Brine Production | Salt Capacity |
|---|---|---|---|
| 96180-100 | 8′ D × 15′ H | 40 USGPM (granulated salt)20 USGPM (rock or solar salt) | Max 23 tons15 t delivery |
| 120180-100 | 10′ D × 15′ H | 40 USGPM (granulated salt)20 USGPM (rock or solar salt) | Max 36 tons25 t delivery |
| 144180-100 | 12′ D × 15′ H | 50 USGPM (granulated salt)25 USGPM (rock or solar salt) | Max 50 tons36 t delivery |
| 144240-100 | 12′ D × 20′ H | 50 USGPM (granulated salt)25 USGPM (rock or solar salt) | Max 70 tons60 t delivery |
Self-regulating by design.
Water and salt levels self-regulate during normal operation. A pressure switch on the fresh-water supply and gravity discharge of salt from the internal bulk load do the work, with no operator intervention required during normal duty.
Pneumatic-Truck Feed
- Water
- Pressure switch in the fresh-water supply line. Fresh water enters at the same rate that brine is withdrawn.
- Salt
- Gravity flow from an internal bulk load supplied by pneumatic truck. Salt flows in at the same rate that salt dissolves.
Built for two demanding markets.
Brine King units are in service across operations where consistent saturation and brine clarity matter, and where corrosion-resistant construction is the cost of doing business.
Food Applications
Continuous saturated brine for food processing operations where clarity and consistency are non-negotiable.
Water Treatment
Brine generation for municipal and industrial water treatment systems, softening, regeneration, and disinfection support.
Sized for your
brine demand.
Tell us your required brine production rate, salt-supply mode, and site footprint. We'll match a Brine King model, or a configuration of one, to the duty.
